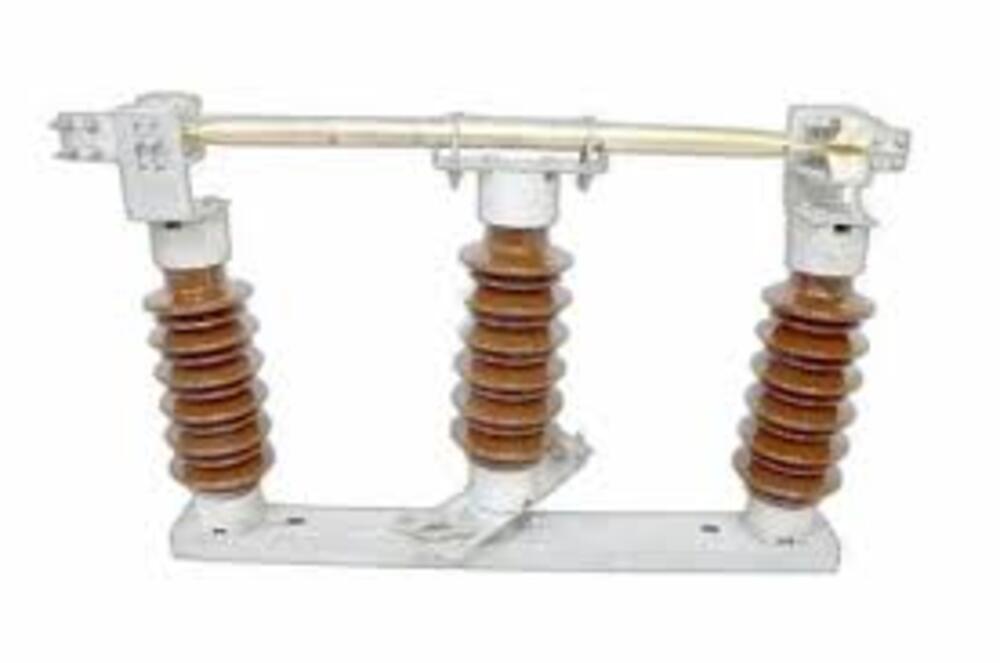

11kv 22kv 33kv air break switch

Name: 11kv 22kv 33kv air break switch
Brand: Ray Electricals
Price: 100.0 INR
Availability: InStock

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

11kv 22kv 33kv air break switch Specification

Number of Module
Single or Three Phase

Response Time
Instantaneous Switching

Temperature Range
-20C to +55C

Max. Current
800A / 1250A / 1600A

Finish Type
Hot Dip Galvanized

Circuit Type
Outdoor Disconnection

Automation Grade
Manual / Semi-Automatic

Protection Level
IP 55

Mechanical Life
2000 operations

Rated Voltage
11kV / 22kV / 33kV

Product Type
Air Break Switch

Material
Galvanized Iron, Copper, Aluminium

Insulation Resistance
10,000 M at 500V DC

Contact Resistance
15

Max. Voltage
33 kV

Operating Temperature
-20C to +55C

Stoke
Manual or Motorized Operation

Size
Customized as per requirement

Color
Silver / Gray

Weight
35 kg (Approx)

Mounting Type
Pole Mounted or Structure Mounted

Current Rating
400A / 630A / 800A

No Of Poles
3

Accessories
Operating Handle, Earthing Switch (optional)

Short Time Withstand Current
16 kA for 3 seconds

Terminal Connector
Suitable for ACSR/AAAC Conductors

Operating Mechanism
Gang Operated

Maintenance
Low, Corrosion Resistant

Standard
IS 9920 / IEC 62271-102 compliant

Arcing Horns
Provided for Arc Quenching

Frequency
50 Hz

Installation
Outdoor, Easily Installable

Lightning Impulse Withstand
170 kVp for 33kV

11kv 22kv 33kv air break switch Trade Information

Minimum Order Quantity
50 Pieces

Delivery Time
7 Days

About 11kv 22kv 33kv air break switch

An 11kV, 22kV, or 33kV air break (AB) switch is a triple-pole, gang-operated switch for medium-voltage electrical distribution systems that uses air as the insulating medium to safely interrupt current. These outdoor-type switches are designed for manual, simultaneous operation of all three phases to isolate circuits for maintenance. Key features include high-quality, corrosion-resistant construction, a robust gang-operated mechanism, and high-voltage insulators, often with arcing

Insulators: 36kV or 33kV class outdoor post insulators.
Contacts: High-conductivity ETP grade violet copper plate contacts, typically spring-loaded for high-pressure connection.
Operating Mechanism: Gang-operated via a manual mechanism (e.g., CS mechanism) that opens all three phases simultaneously.
Blade/Switch Part: Rectangular copper blade with a pivoting motion (horizontal or vertical).
Frame & Base: Galvanized structural steel frame. [1, 2, 3, 4]

Key Features & Applications

Voltage/Current: Rated for 33kV systems, typically available in 400A, 630A, or 800A capacities.
Operation: Manual air-break, usually installed on top of poles.
Isolation: Offers a visible break in the circuit, usually meant for off-load switching.
Design: Often supplied in 3-pole configurations (for 3-phase) and can have single or double break contacts.
Usage: Commonly used in distribution systems, substations, and industrial sites for maintenance isolation. [1, 2, 3, 4, 5, 6, 7]

Superior Switching for Outdoor Installations

Specially designed for outdoor deployment, these air break switches offer swift, reliable disconnection for 11kV, 22kV, and 33kV lines. With IP55 protection and a corrosion-resistant hot dip galvanized finish, the switches are ideal for varying climatic conditions. Their low maintenance and straightforward installation minimize downtime and costs, making them a preferred solution for utilities and industries.

High Safety Standards and Robust Performance

Engineered to maintain high insulation resistance (10,000 M at 500V DC) and low contact resistance (15), our switches ensure operational safety and reliability. Gang operated mechanisms, arcing horns, and strong mechanical life (2,000 operations) provide consistent performance. Suitable for ACSR/AAAC conductors, these switches meet international and domestic standards for peace of mind.

FAQ's of 11kv 22kv 33kv air break switch:

Q: What standards do the 11kV, 22kV, and 33kV air break switches comply with?

A: These switches are manufactured in accordance with IS 9920 and IEC 62271-102 standards, ensuring their safety, reliability, and compatibility with various power distribution requirements.

Q: How are the air break switches typically installed and where can they be used?

A: The switches are designed for easy installation outdoors and can be mounted either on poles or supporting structures. They are ideal for utility substations, industrial plants, and overhead distribution lines.

Q: What operational mechanism does the air break switch use and what are its benefits?

A: These switches utilize a gang operated mechanism, enabling simultaneous operation of all poles for safe and efficient line disconnection. This reduces manual intervention and ensures minimal response time during switching.

Q: What is the maintenance process, and how often is servicing required?

A: The switches are designed for low maintenance due to their corrosion-resistant materials and robust construction. Regular visual inspections and occasional cleaning are typically sufficient, reducing overall operational costs.

Q: What current ratings and voltage ranges are available for these air break switches?

A: Available in current ratings of 400A, 630A, 800A, 1250A, and 1600A, these switches cater for 11kV, 22kV, and 33kV systems. Custom sizes and modules (single or three-phase) are also available upon request.

Q: How does the air break switch ensure safety during operation?

A: Safety is ensured through features like arcing horns for effective arc quenching, optional earthing switches, high insulation resistance, and rapid, reliable switching mechanisms. The robust design also provides high withstand currents and IP 55 protection.
