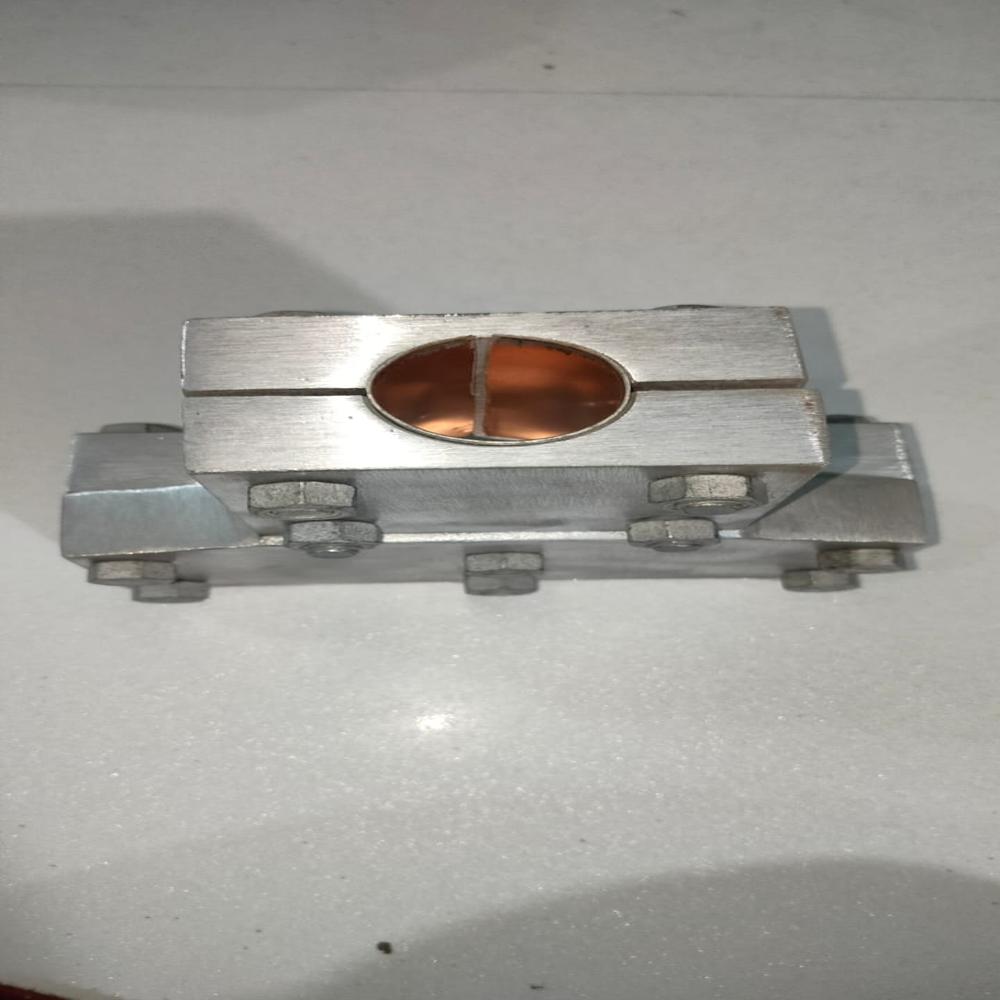

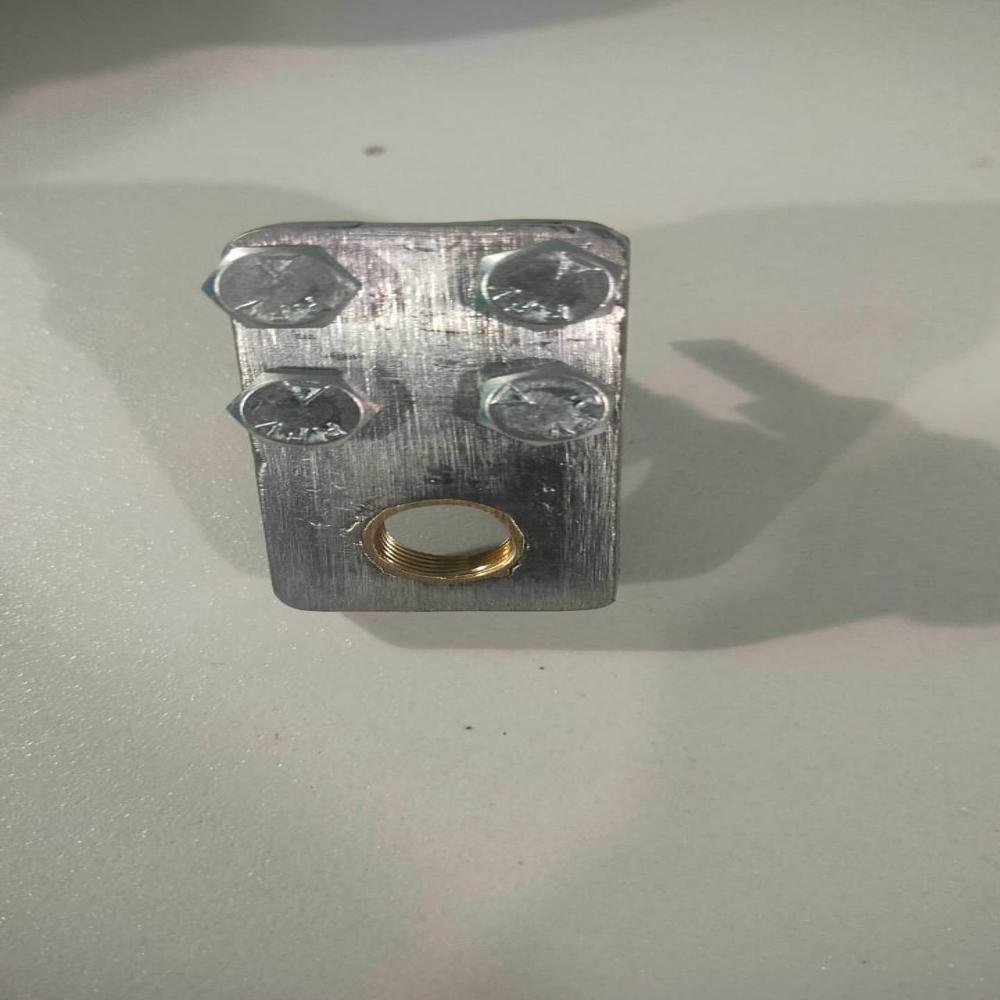

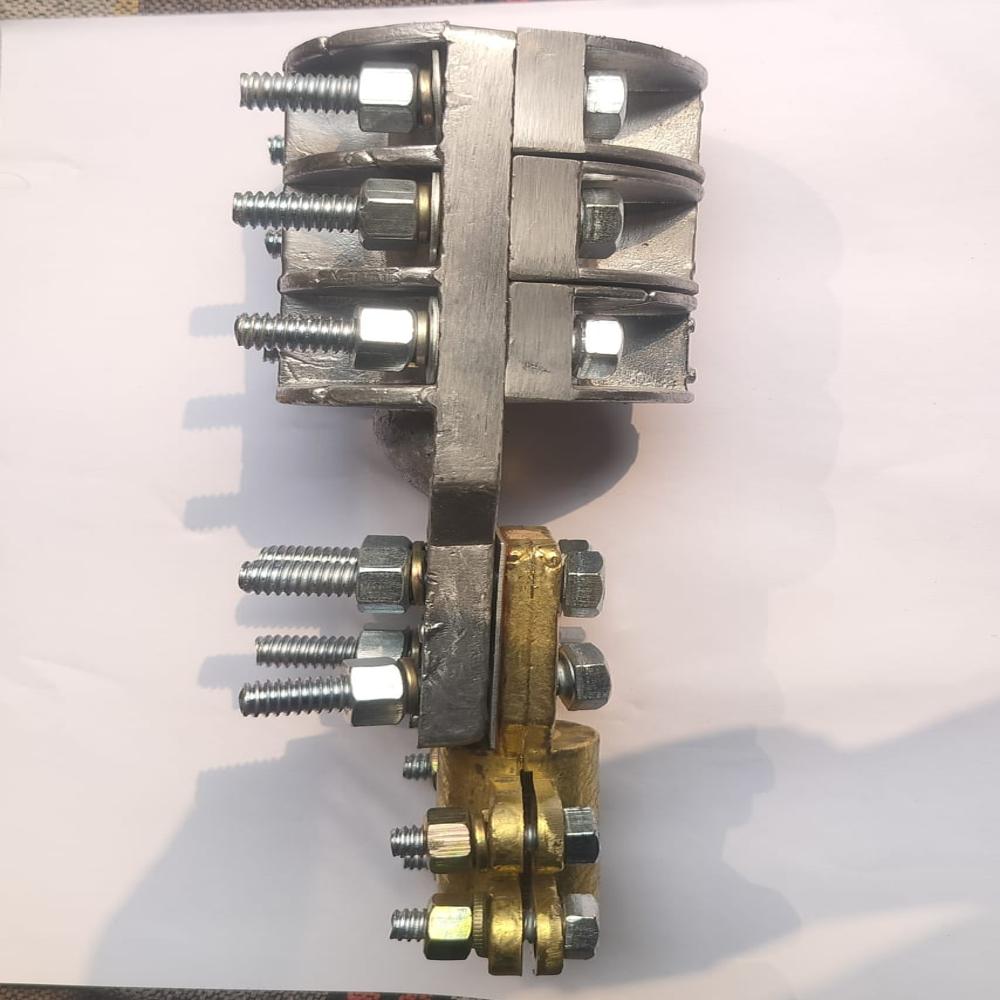

bimetallic connector

Name: bimetallic connector
Brand: Ray Electricals
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 99 Pieces

bimetallic connector Specification

Weight
100-1000 Grams (g)

Conductor
DOG-WOLF-PANTHER-ZEBRA-TIGER- ETC

Pad hole diameter
Precise fit

Temperature rating
High

Installation method
Crimped

Corrosion resistance
Enhanced

Ferrule length
Standard

End usage
Outdoor

Joint integrity
Robust

Copper-aluminum transition
Yes

Marking
Stamped size

bimetallic connector Trade Information

Minimum Order Quantity
99 Pieces

Delivery Time
1 Week

bimetallic connector About

A bimetallic connector isan electrical connector made of two different metals, most commonly aluminum and copper, joined to connect conductors of different materials without causing galvanic corrosion. They are designed to provide a secure, low-resistance connection that can withstand thermal expansion and contraction from temperature changes. These connectors prevent issues like corrosion, overheating, and failure that would occur if aluminum and copper were directly joined, and are often friction-welded to create a strong metallurgical bond.

Key features and function

Construction:Composed of two sections, typically an aluminum barrel for the aluminum conductor and a copper palm or barrel for the copper conductor.
Bonding method:The two metal parts are usually joined by a friction welding process, which creates a strong, inseparable metallurgical bond and eliminates bimetallic corrosion.
Corrosion prevention:They are specifically designed to avoidgalvanic corrosion, which happens when two dissimilar metals are in direct contact.
Jointing compound:The aluminum barrel is often filled with a jointing compound to prevent oxidation of the exposed aluminum surface.
Thermal expansion:They accommodate the different rates of thermal expansion between aluminum and copper, ensuring the connection remains secure under temperature fluctuations.

Common applications

Joining aluminum and copper conductors in electrical installations.
Connecting aluminum cables to copper bus bars or terminals, such as in switchgear or circuit breakers.
Used in lightning protection systems when copper is used for earthing in an aluminum system.

Superior Copper-Aluminum Transition

Our bimetallic connector addresses galvanic compatibility challenges with a seamless copper-to-aluminum transition, minimizing the risk of corrosion and electrical failure. Built for outdoor installations, it guarantees dependable conductivity and strength in harsh environments, making it ideal for utility networks and heavy-duty applications.

Precision Engineering & Robust Installation

The connector features a precisely machined pad hole and standard ferrule length, ensuring a perfect fit for specified conductors. Its crimped installation method delivers a strong, reliable connection, further reinforced by enhanced corrosion resistance and high temperature stability. Stamped markings simplify identification during installation and maintenance.

FAQ's of bimetallic connector:

Q: How should the bimetallic connector be installed for optimal performance?

A: The bimetallic connector is designed for crimped installation, which ensures a robust and secure joint. Use an appropriate crimping tool specified for the connector size to ensure proper compression and conductivity.

Q: What makes the connector suitable for outdoor applications?

A: Its enhanced corrosion resistance and high temperature rating, in combination with robust joint integrity, make it highly reliable for outdoor use. Additionally, the materials and manufacturing standards are tailored for weather-resistant performance.

Q: When is it necessary to use a copper-aluminum bimetallic connector?

A: A bimetallic connector is necessary when connecting copper conductors to aluminum ones, ensuring safe and reliable electricity flow while preventing galvanic corrosion. It is especially beneficial in power transmission and distribution lines.

Q: Where can these connectors be used effectively?

A: They are ideal for outdoor electrical installations such as substations, transmission lines, and utility power lines, accommodating conductor types like DOG, WOLF, PANTHER, ZEBRA, and TIGER.

Q: What is the process for selecting the right connector size and type?

A: Selection should be based on the conductor type and size, pad hole diameter, and application requirements. The stamped size marking on each connector assists in accurate identification and installation.

Q: What are the benefits of using a robust crimped joint in this connector?

A: A crimped joint provides superior mechanical and electrical connection, reducing contact resistance and improving the durability of the joint, particularly in severe environmental conditions.

Q: How does the design enhance corrosion resistance over time?

A: The connector's bimetallic construction and surface treatment offer enhanced protection against environmental factors, ensuring long-term resistance to corrosion even in outdoor settings.
